The Côte d'Ivoire Abidjan Port Expansion Camp Project is a significant initiative aimed at enhancing the port's throughput and contributing to the economic growth of the country. This project not only focuses on the expansion of the port but also on creating a well - equipped and functional camp for the workers involved.

The Abidjan Port, situated in Côte d’Ivoire, holds a crucial position as an important container transshipment port in West Africa. In recent years, despite rapid growth in throughput, the presence of only one container terminal has restricted its further development. However, upon expansion, the annual throughput capacity is projected to reach 1.22 million TEUs, positioning it as the largest port in West Africa and significantly boosting the nation's economy.

Location and Area

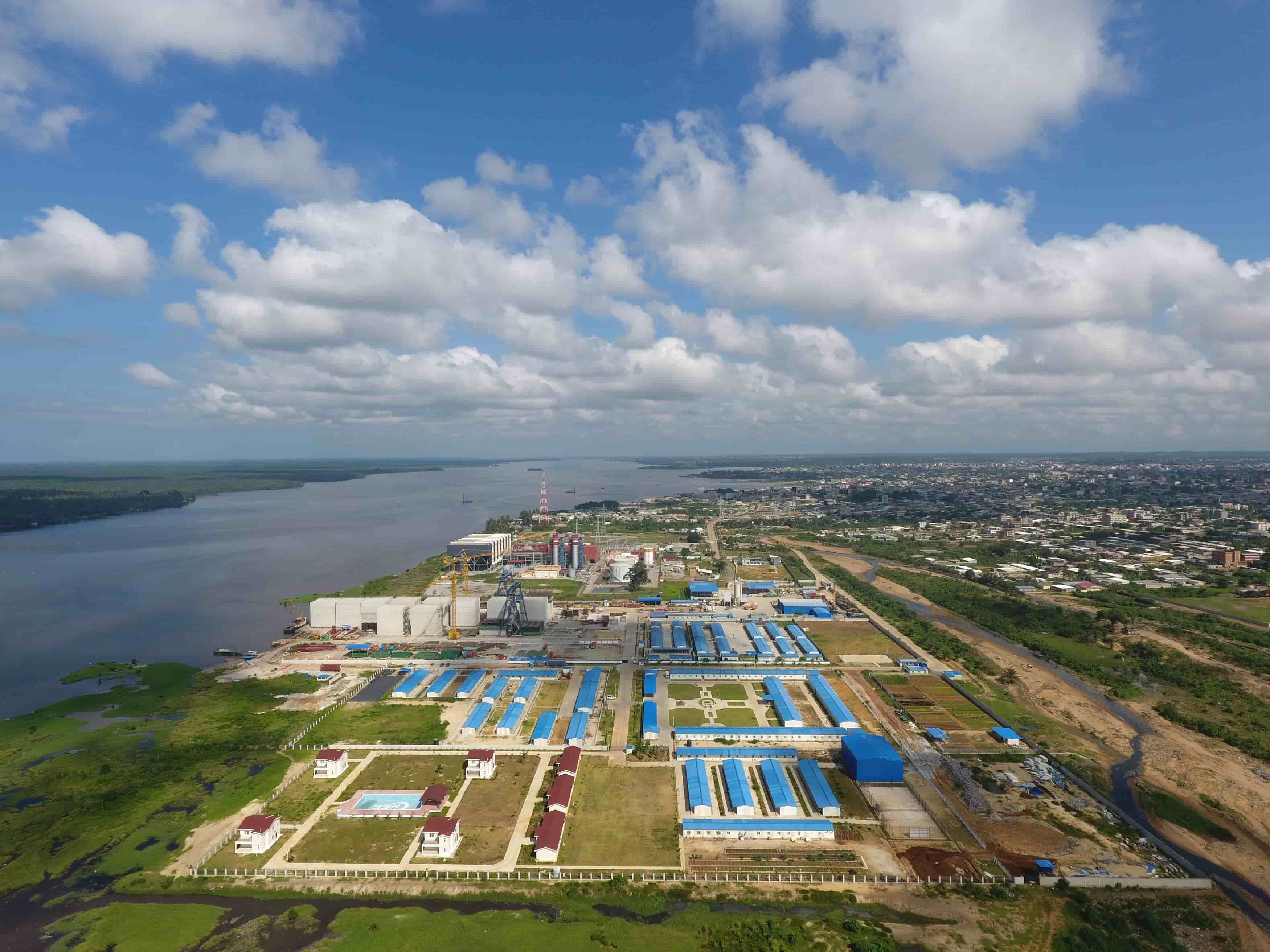

The camp spans approximately 27 hectares and is located about 4.5 nautical miles from the dock area. This strategic location ensures easy access for the workers to the port operations.

Building Composition

1. Functional Building

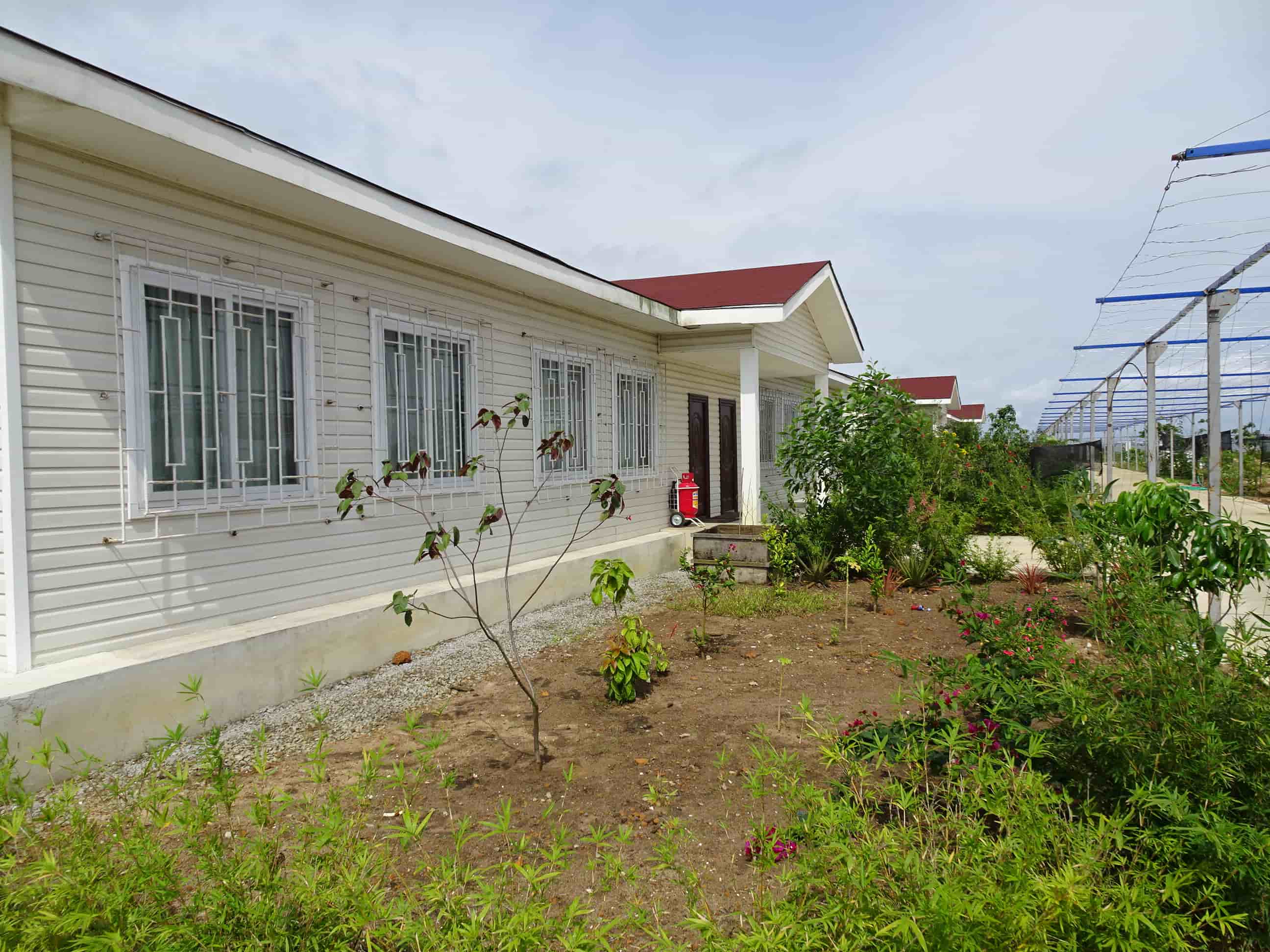

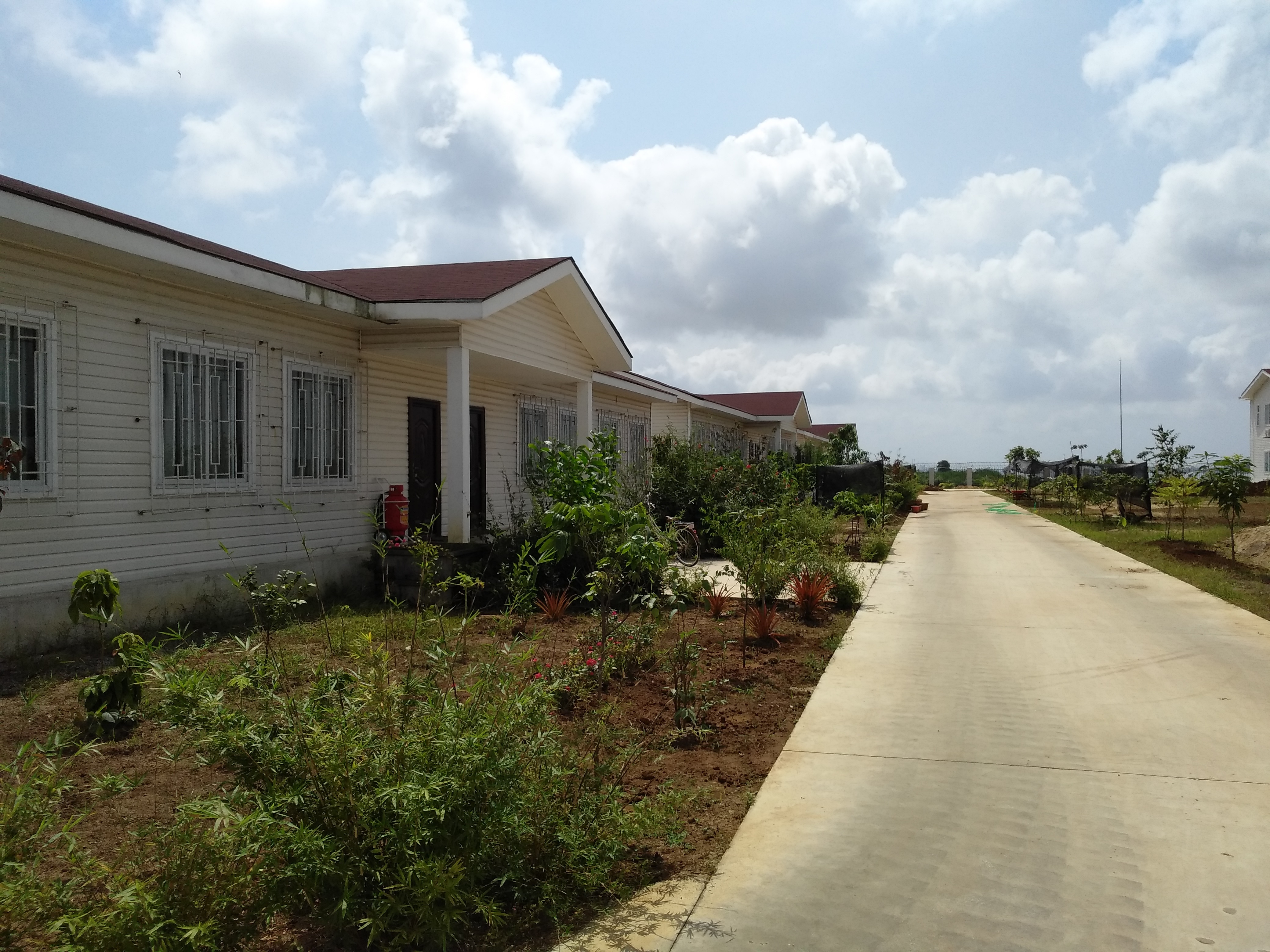

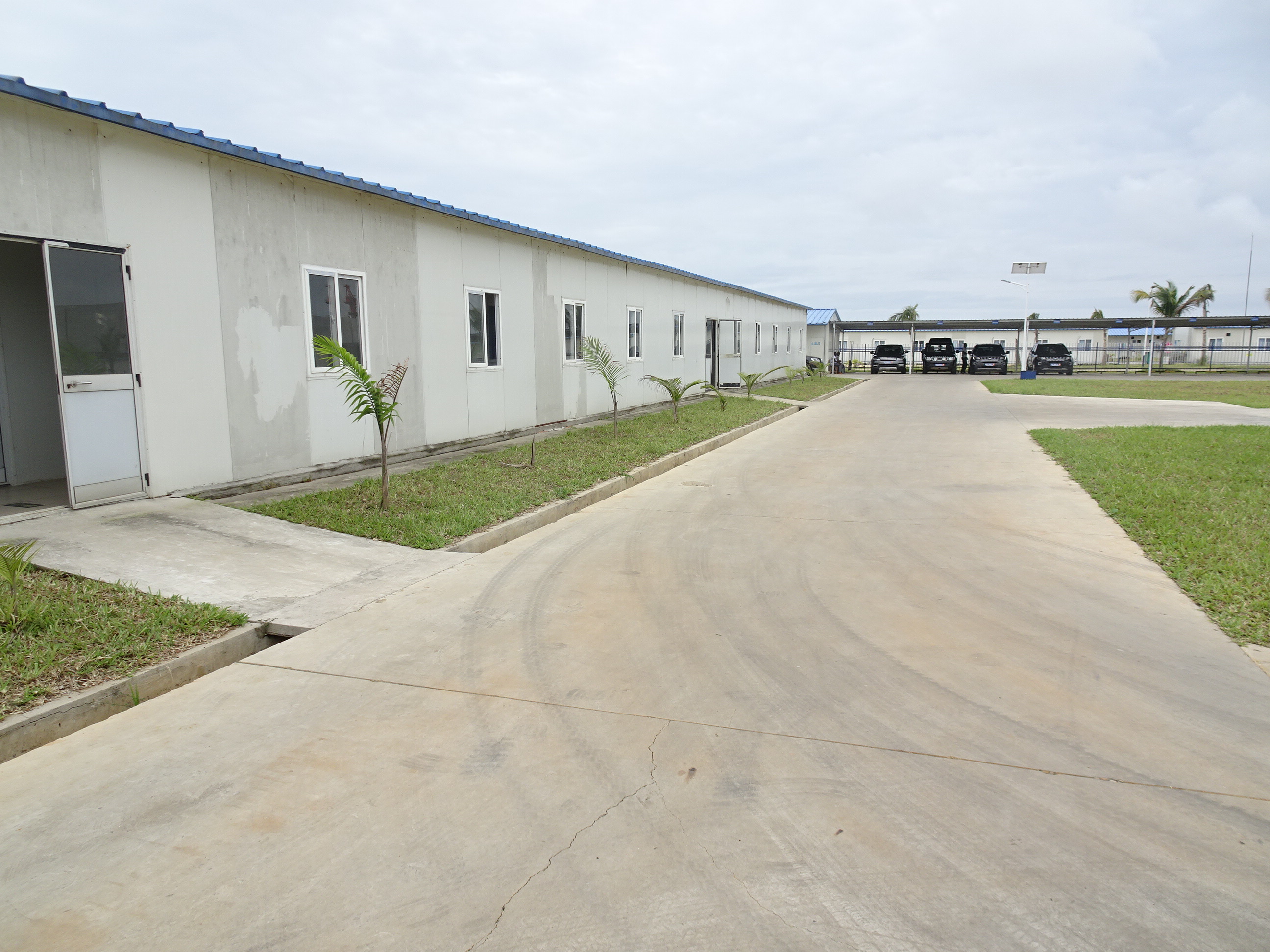

   The main buildings within the camp include offices, dormitories, and other essential functional structures. Guesthouses are designed as light - steel villa houses, while other buildings follow the ZA model. This variety in building types caters to different needs and preferences within the camp.

2. Land Area Distribution

1. Concrete Mixing Plant and Prefabricated Production Area: Covers 80,000m², facilitating the production of necessary construction materials on - site.

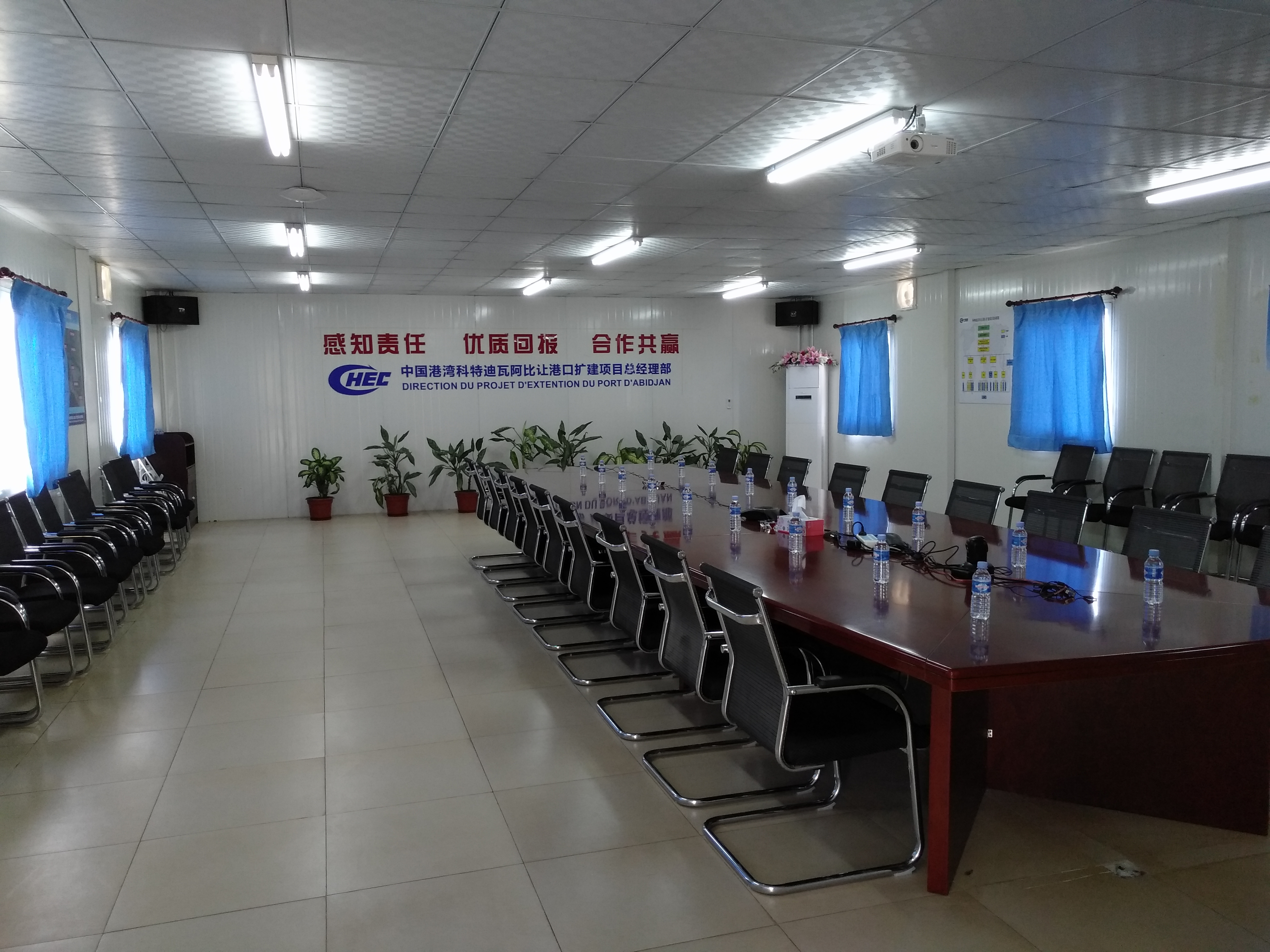

2. Office Area: With 14,000m², it provides a dedicated space for administrative and operational tasks.

3. Chinese Living Area: Spanning 32,500m², it offers accommodation and facilities for the Chinese workers.

4. Local Workers Living Area: At 4,000m², it meets the living requirements of the local workforce.

5. Reception Area: Occupies 13,000m², serving as a welcoming point for visitors.

6. Cultural and Sports Activity Area: Measuring 7,500m², it includes spaces for various recreational activities.

7. Planting Area: With 7,000m², it may contribute to the camp's self - sustainability or aesthetic appeal.

8. Spare Area: Also 7,000m², which can be utilized for future expansions or unforeseen needs.

Entrance and Fencing

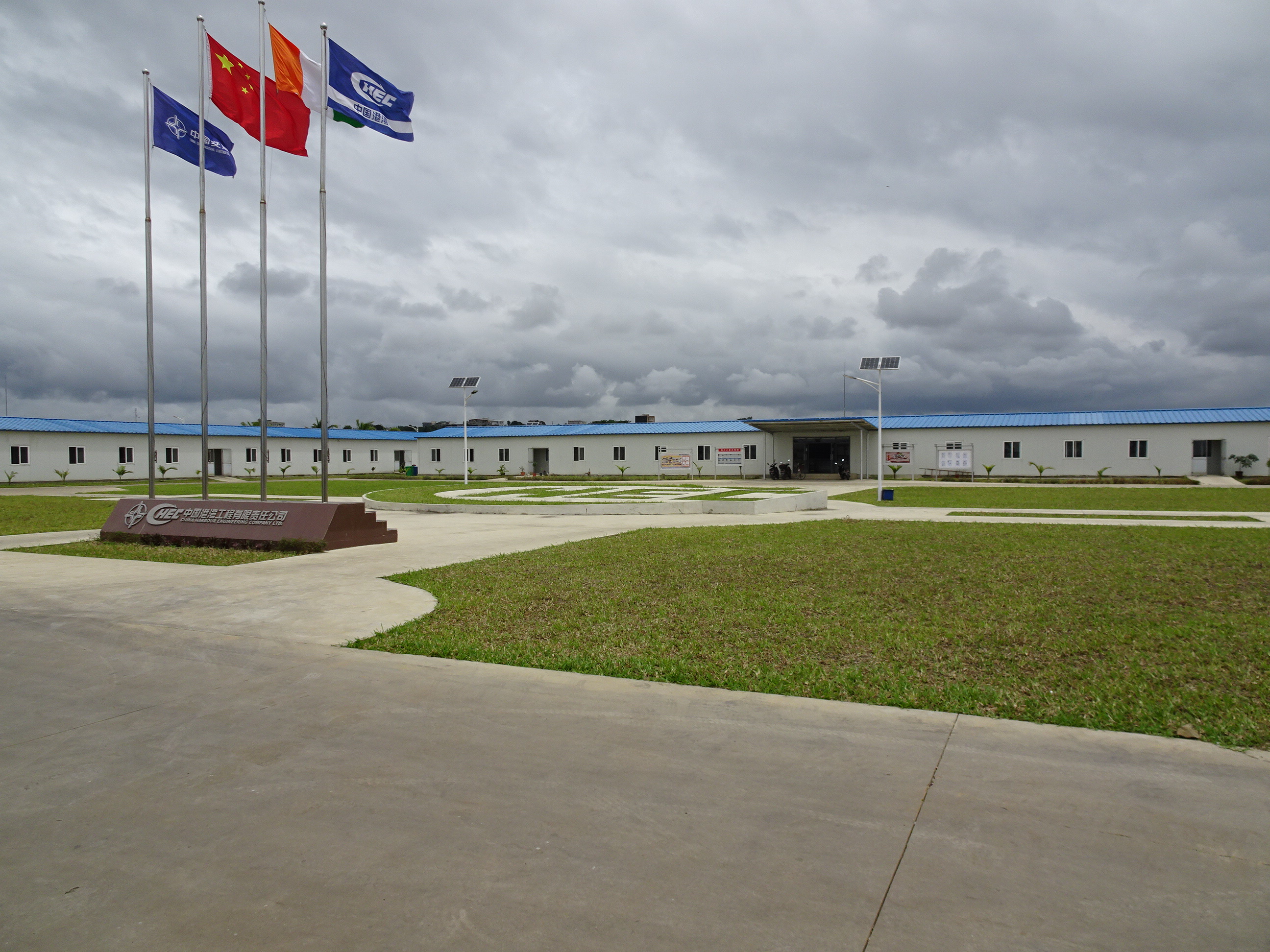

The production and living areas of the camp utilize double - iron gates as entrance gates, ensuring a clear separation between people and vehicles. The right - hand side of the gate prominently displays the project name and logo, creating a strong brand identity. On the left - hand side, there are signs for video surveillance and entry - exit registration, enhancing security and access control.

A 2.5m high brick fence surrounds the camp, topped with barbed wire for added security. The middle of the wall is painted white, with a blue logo printed on it, giving it an atmospheric, safe, and aesthetically pleasing appearance.

Camp Features

1. Structural Safety

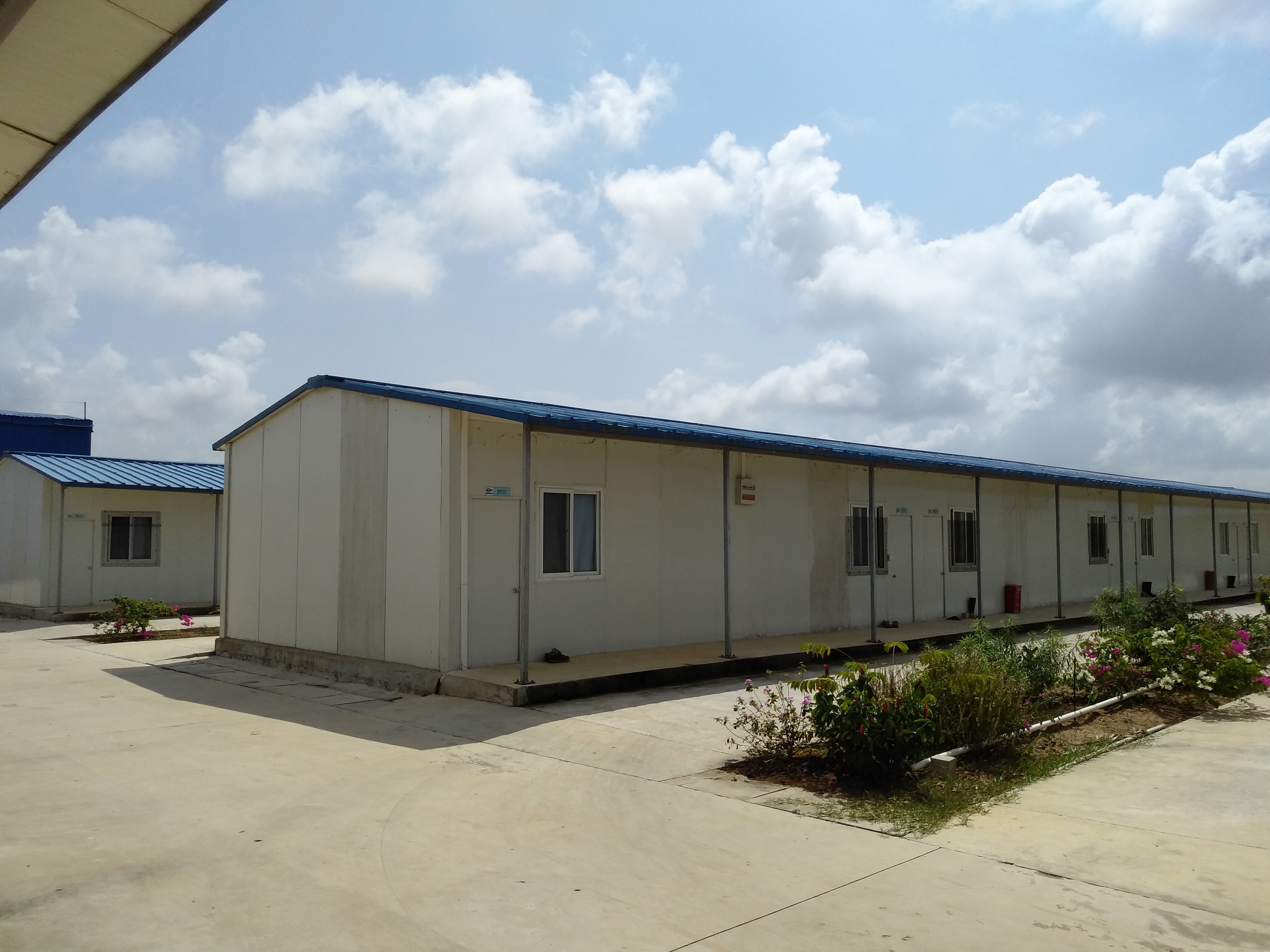

The camp's structures are based on a cold - formed thin - walled light - steel structure system. This design offers stability and safety, with a designed wind - resistance capacity of level 10. It can withstand strong winds, ensuring the safety of the occupants and the integrity of the buildings even in adverse weather conditions.

2. Good Anti - corrosion

The structures undergo galvanizing and color - spraying treatment. This process not only enhances the appearance of the buildings but also provides excellent anti - corrosion properties, making them durable in the local environment. It represents the best combination of aesthetics and corrosion resistance currently available.

3. Patented Waterproofing

The roof design is a standout feature. Departing from the traditional self - tapping screw connection method, it incorporates a patented structural waterproof design independently developed by Chengdong. This design eliminates the risk of rain leakage even after repeated disassembly and assembly of the roof. Having been proven through 15 years of practical application, it ensures the long - term functionality of the roofs.

4. Multiple Disassembly and Assembly

The camp buildings are highly adaptable, with the ability to be disassembled and assembled up to 10 times. The repetitive rate of disassembly and assembly can exceed 98%. This feature is valuable for future relocations, expansions, or modifications of the camp.

5. Recreational Facilities

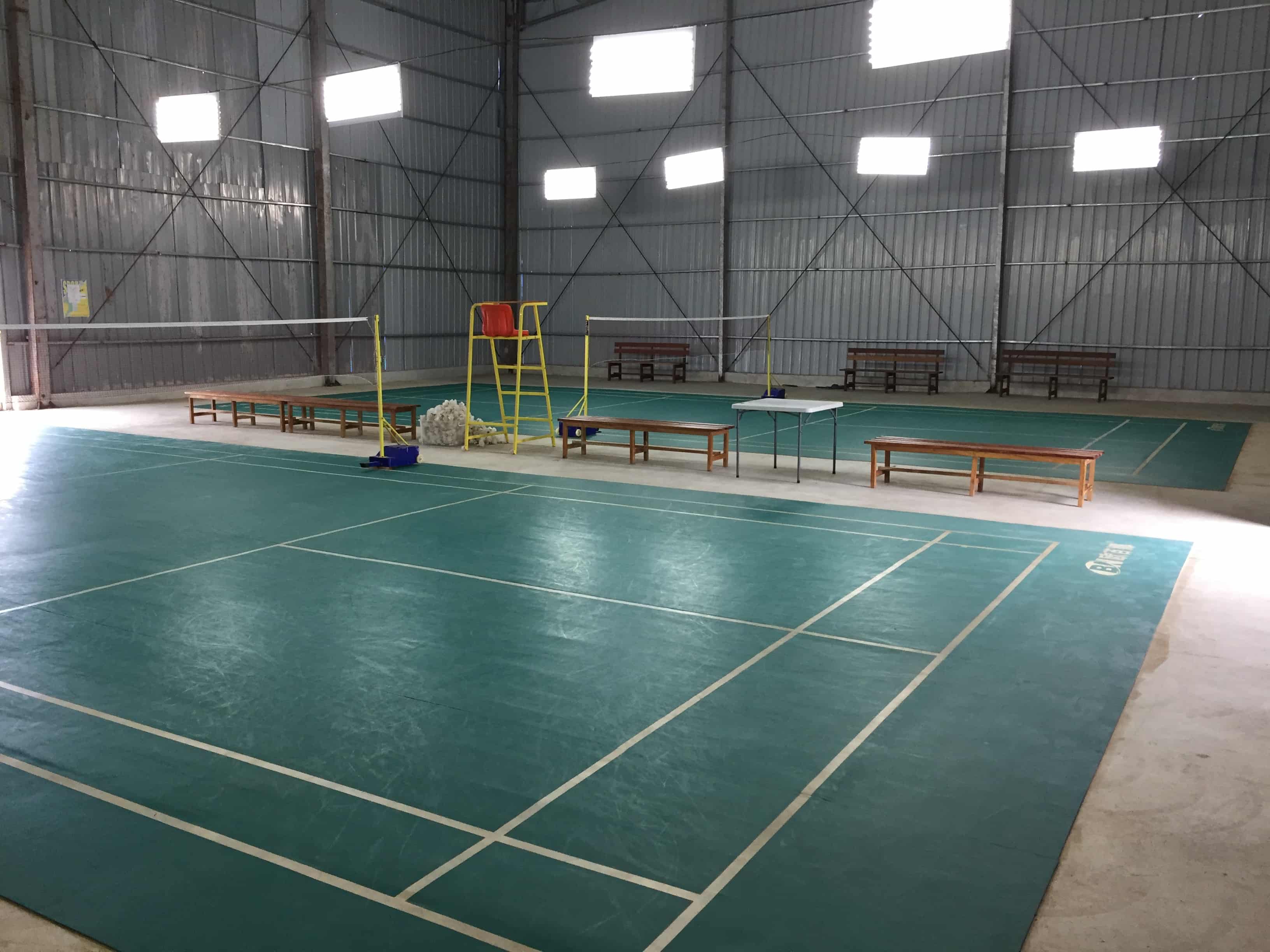

The camp is well - equipped with recreational facilities to meet the needs of its occupants during their off - duty hours. It includes two standard outdoor basketball courts, one tennis court, one swimming pool, one football court, two high - standard indoor badminton courts, three gymnasiums, three table tennis rooms, and four billiard rooms.

6. Fire Safety

   The building materials used in the camp are flame - retardant and fire - resistant. With the exception of the reception area, all buildings are single - floor prefabricated houses. A minimum fire - safety distance of 8 meters is maintained between buildings, allowing for easy access of fire trucks.

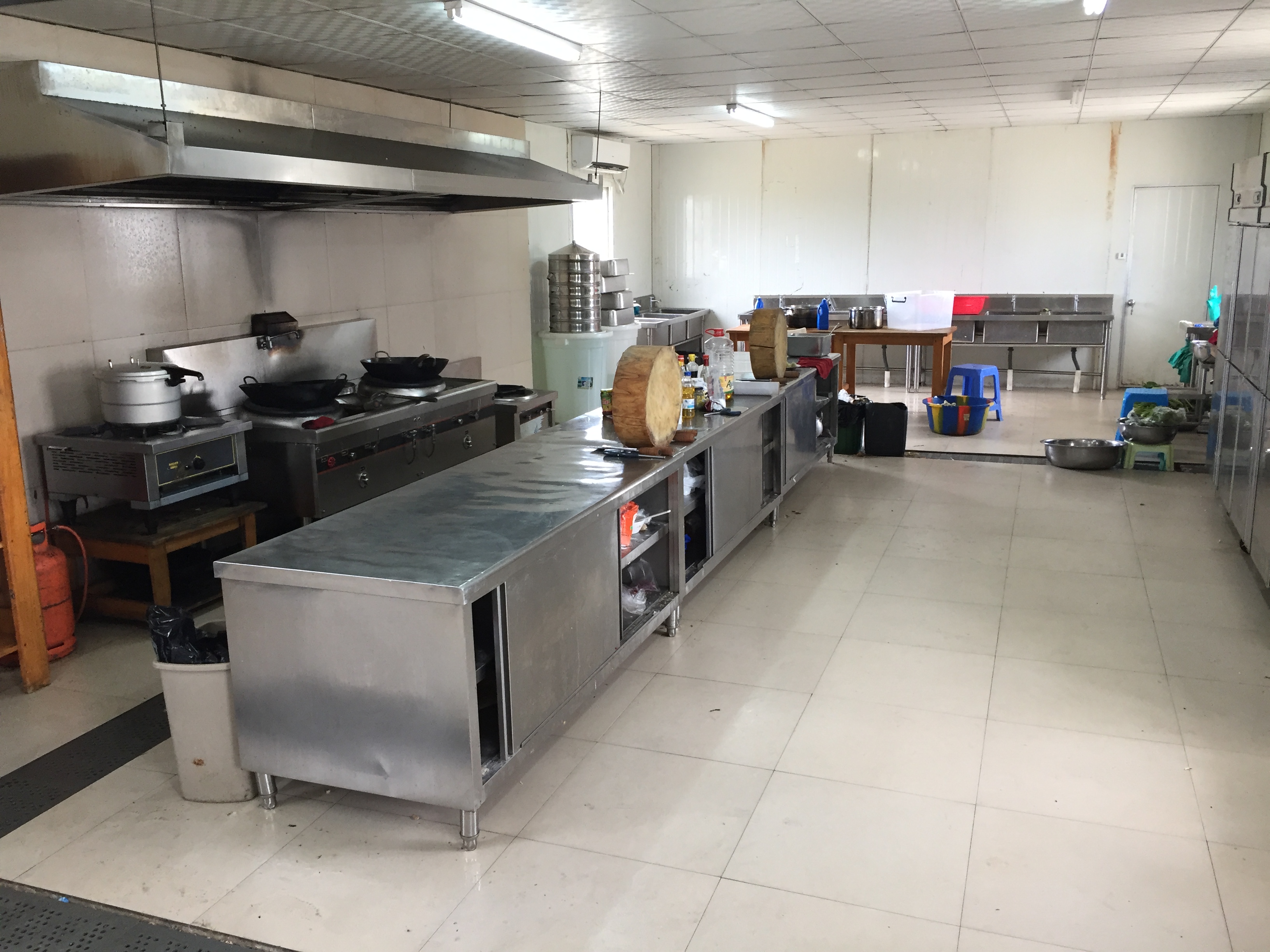

   In the camp office area and living area, 2pcs of 4kg ABC dry powder fire extinguishers are provided for every 60 - square - meter building. Additionally, fire extinguishers are placed in key fire - risk locations such as kitchens and warehouses, ensuring comprehensive fire safety.

Conclusion

The Côte d'Ivoire Abidjan Port Expansion Camp Project showcases a well - thought - out combination of functionality, safety, and comfort. From its strategic location and diverse building layout to its advanced structural features and comprehensive safety measures, it sets a high standard for similar projects.
