Prefab Mining Camp Containers for Extreme Cold Climates

Remote mining and energy projects often operate in high-altitude plateaus, inland basins, or sub-zero regions where temperatures can fall to around minus 20 degrees or even lower. In these conditions, prefab mining camp containers are not simply temporary shelters; they become the foundation of safe, efficient working and living environments for project teams. Traditional brick or concrete buildings are slower to build and less flexible when mining operations expand, relocate, or require rapid camp deployment in remote areas.

Chengdong Modular House (CDPH) addresses this challenge with integrated camp solutions centered on container houses and modular buildings. Through factory prefabrication, cold-resistant design, and life-cycle services, Chengdong helps mining owners create comfortable offices, dormitories, and supporting facilities much faster than conventional site-built construction. For an overview of Chengdong’s global modular camp capabilities, visit Chengdong Modular House.

Why Prefab Mining Camp Containers Fit Remote Projects

Remote mining camps must solve several problems at once: fast construction, comfortable living, reliable durability, and stable quality across different phases of the project. Owners need structures that can be transported efficiently, assembled quickly, and flexibly configured into offices, worker accommodation, canteens, clinics, and public spaces without re-designing from zero on every site.

Chengdong’s camp solutions are designed for exactly this environment. The camp manual shows that planning covers not only buildings but also water supply, drainage, heating, electricity, weak-current systems, firefighting, security, internal roads, environmental facilities, and environmental protection. These nine supporting systems ensure that prefab mining camp containers are integrated into a complete camp rather than working as isolated boxes.

Core Product Performance

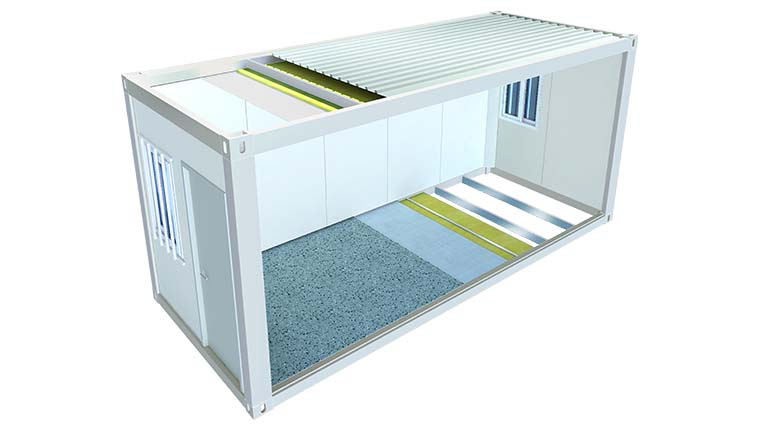

At the center of Chengdong’s mining camp solutions are container-based modular units that act as the core prefab mining camp containers. Each unit uses a steel frame as the basic structural module and can be used alone or combined horizontally and vertically to form larger office blocks or multi-storey camp buildings up to three levels high. The frames are made from hot-dip galvanized profiles and assembled with bolted connections on site, which improves installation speed and structural reliability.

Standard container units are typically about 6055 mm long, 2990 or 2435 mm wide, and 2896 mm high, with indoor clear height around 2500 mm. This standardized geometry gives project teams a practical toolkit to plan repeatable office rooms, meeting rooms, dormitories, washrooms, and shared support spaces across different camp sizes. Detailed specifications for these modular products are available on the Container House & Modular House Products page.

Thermal Design for Extreme Climates

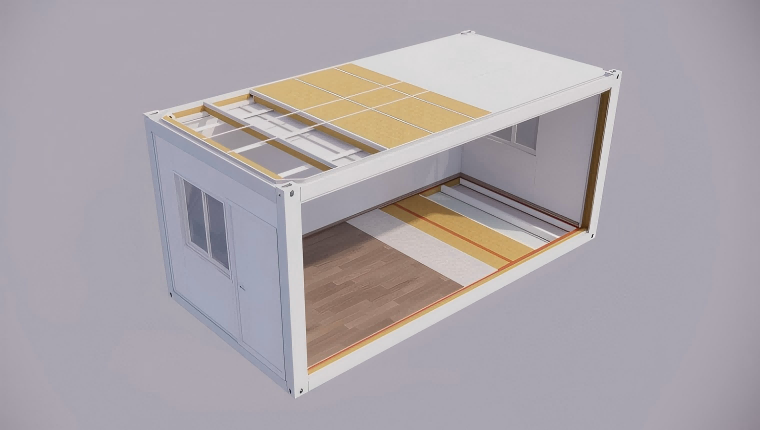

For mining camps in cold or severe climates, insulation performance is one of the most important reasons to select prefab mining camp containers instead of improvised temporary buildings. Chengdong’s cold-resistant box house manual divides thermal design into several temperature bands, including -10 to -20, -20 to -30, -30 to -40, and -40 to -50 degrees Celsius, with insulation thickness and heat transfer performance adjusted for each range. This allows the building envelope to be configured according to the actual climate conditions of each project.

Technical data shows that the thermal envelope can include roof insulation around 100 mm, optional insulated floors, wall systems using rock wool or similar insulated composite panels, and low-emissivity glazing in higher-performance cold-region configurations. In the cold-resistant technical manual, wall heat transfer coefficients and insulation thicknesses are tuned for different extreme temperature bands so that indoor comfort can be maintained while energy consumption is reduced. For remote mining sites, this improves both worker comfort and heating efficiency, because the system does not need to constantly compensate for unnecessary heat loss.

Real Project: Inner Mongolia Mining Camp

A representative example of prefab mining camp containers in action is Chengdong’s project for Dazhong Mining in Inner Mongolia. The project is located in a cold and remote mining area where winter outdoor temperatures can reach around minus 20 degrees, so the client needed fast construction and reliable indoor comfort for both accommodation and administrative functions.

Chengdong designed and delivered an integrated modular complex totaling more than 8,000 square meters, combining worker dormitories, office areas, public zones, and supporting facilities into a coordinated camp. Rather than using a mixture of standard box rooms and traditional masonry bathrooms, the project adopted a fully modular strategy by pairing box-type units with factory-molded integrated bathrooms. This significantly reduced interface problems between systems, enhanced waterproofing and airtightness, and made long-term maintenance easier—an important benefit in cold climates.

The Inner Mongolia case clearly illustrates the schedule advantage of prefab mining camp containers. With a high level of factory prefabrication and standardized assembly, more than 6,000 square meters of living and working space were completed in about one month, shortening the construction period by nearly 70 percent compared with conventional construction. At the same time, the modular buildings were able to maintain indoor temperatures of around 20 degrees while outdoor temperatures were approximately minus 20, proving the effectiveness of cold-resistant box technology and optimized insulation.

Functionally, the project integrates offices, dormitory floors, a canteen, and supporting facilities into a unified mining camp. Chengdong also optimized the height and length of certain office modules and coordinated suspended ceilings and pipe shafts so that upper-floor bathroom pipework could be installed without compromising the usability of lower-floor office spaces. This shows how prefab mining camp containers can solve practical engineering challenges such as pipe routing, maintenance access, and space efficiency within a standardized modular system.

More project information can be found on Chengdong’s case page Modular Dormitory for Mining Camps in Extreme Climates.

Flexible Space Planning

Prefab mining camp containers support flexible planning for many different functions using the same structural logic. Chengdong’s camp manual includes office and accommodation modules in several sizes, such as compact office units around 14.74 square meters and larger modules around 24.74 square meters, 34.37 square meters, and 41.01 square meters. These spaces can be arranged as single offices, engineering workrooms, HSE spaces, meeting areas, dorm rooms, or mixed-use administration zones depending on project needs.

Planning examples for 500-person camps show how dormitory zones, office zones, canteens, gyms, medical stations, and storage buildings can be organized within one integrated site. Because all of these buildings are created using modular units, prefab mining camp containers can scale smoothly from a small exploration camp to a full operation camp while preserving the same basic structural system. This makes expansion, relocation, and gradual upgrade more straightforward for owners over the life of a mining project.

Supporting Systems for Long-Term Operations

Mining camps require more than building shells; they also need reliable utilities and safety systems for stable daily operation. Chengdong’s nine-system framework combines building design with water supply and drainage, heating, electrical distribution, weak-current communication, firefighting, security, roads and traffic, environmental facilities, and environmental protection. This ensures that prefab mining camp containers are connected to dependable infrastructure from the beginning.

The camp manual lists key equipment such as water treatment units, storage tanks, diesel backup generators, transformers, firefighting facilities, and wastewater treatment systems as part of the full camp plan. It also highlights LED lighting, smart security systems, and modular sanitary products that improve comfort and reduce maintenance difficulty in remote environments. As a result, mining camps built with prefab mining camp containers can function as semi-independent communities even when they are far from urban infrastructure.

Choosing Chengdong for Prefab Mining Camp Containers

Chengdong Modular House has delivered engineering camps for mining, energy, and infrastructure projects in more than 100 countries, including large dormitory camps and cold-resistant sites in harsh climates. This experience helps project owners handle typical challenges in remote areas, such as tight schedules, difficult logistics, and long-term operation of camps.+2

For mining projects, Chengdong offers prefab mining camp containers that combine structural stability, mobility, and good insulation performance, so the same modules can be used for offices, dormitories, and other key facilities. Through integrated planning of water, power, heating, safety, and environmental systems, these modular buildings work together as a complete camp rather than as separate units.

Projects like the fast-build modular dormitory and office complex for Dazhong Mining in Inner Mongolia show how this approach reduces construction time while keeping indoor spaces warm and comfortable in winter conditions around minus 20 degrees. Mining companies that need to build or upgrade camps in challenging environments can rely on Chengdong’s prefab mining camp containers to speed up delivery, improve living conditions, and reduce maintenance pressure over the life of the camp.
